General

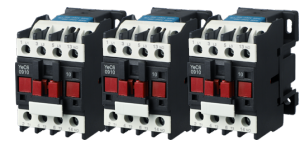

YeC6 series AC Contactor is suitable for using in the circuits of rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.

Standard: IEC 60947-4-1

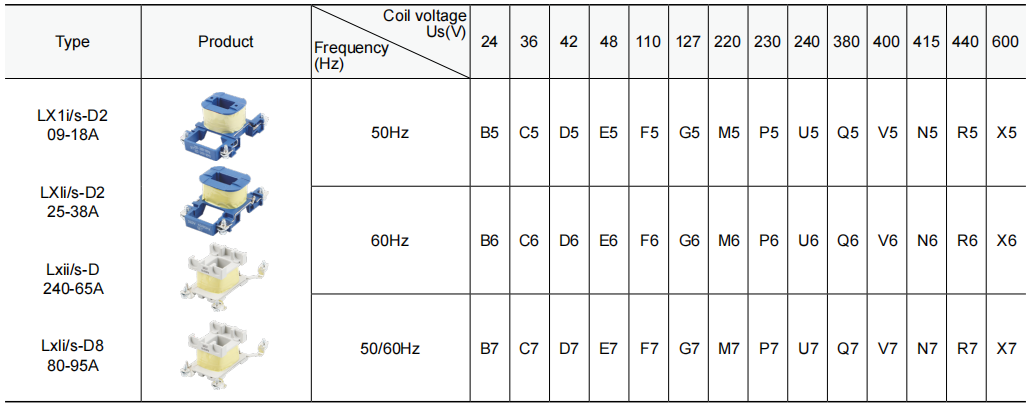

Coil voltage of contactor and code

Operating Conditions

• Ambient temperature: -5°C~+40°C
• Altitude: ≤2000m
• Relative humidity: The maximum temperature of 40°C, the air relative humidity not exceed 50%, at a lower temperature can allow for a higher relative humidity. If humidity changes as a result of occasional gel generated, should eliminate it.
• Pollution level: 3
• Installation category: III
• Installation position: The installation degree of the tilt and vertical plane should not exceed ±22.5°, should be installed in place with no significant impact shaking and vibration

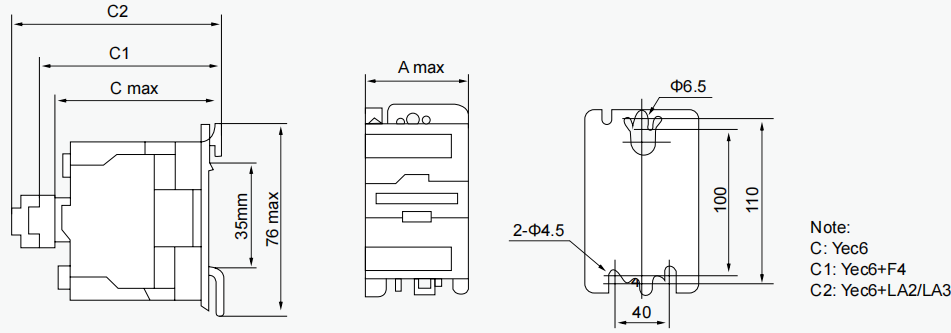

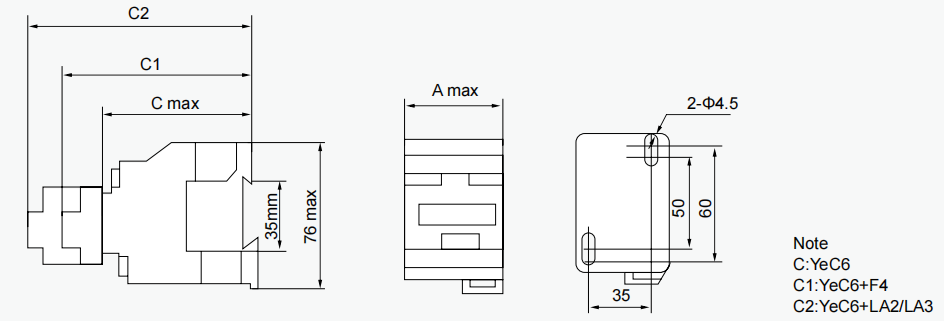

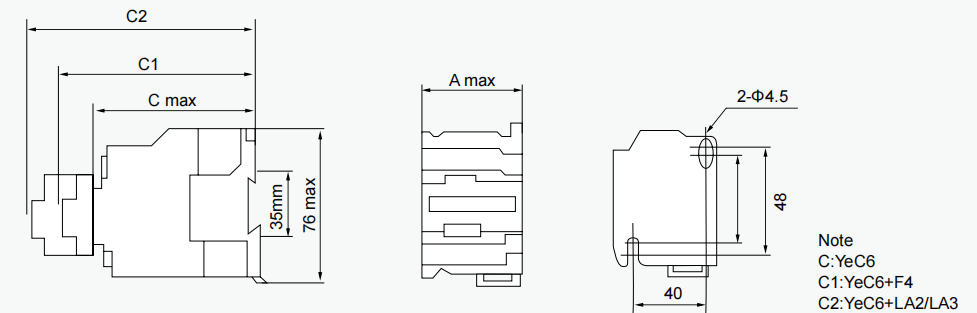

• Installation: The installation of fastening screws can be used, the YeC6-09-32 contactor can also be installed on 35mm standard DIN rail.
