Reliable electrical control with AC contactors

Model No: YeC6

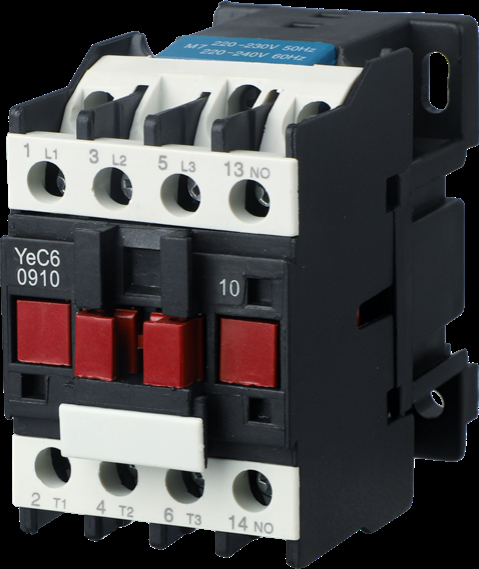

YeC6 AC Contactor

YeC6 series AC Contactor is suitable for using in the circuits of rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.
Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.
With the thermal relay, it is combined into the electromagnetic starter.
Standard : IEC 60947-4-1

Quantity :

Contact Now

General

YeC6 series AC Contactor is suitable for using in the circuits of rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.

Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.

With the thermal relay, it is combined into the electromagnetic

starter.

Standard : IEC 60947-4-1

Coil voltage of contactor and code

Coil voltage

Us(V)

24

36

42

48

110

220

230

240

380

400

415

440

600

50Hz

B5

C5

D5

E5

F5

M5

P5

U5

Q5

V5

N5

R5

X5

60Hz

B6

C6

D6

E6

F6

M6

P6

U6

Q6

V6

N6

R6

X6

50/60Hz

B7

C7

D7

E7

F7

M7

P7

U7

Q7

V7

N7

R7

X7

Operating condition

▪ Ambient temperature: -5°C~+40°C

▪ Altitude: ≤2000m

▪ Relative humidity: The maximum temperature of 40 degrees, the air relative humidity not ex- ceed 50%, at a lower temperature can allow for a higher relative humidity, if humidity changes as a result of occasional gel generated,should eliminate it.

▪ Pollution level: 3

▪ Installation category: III

▪ Installation position: The installation degree of the tilt and vertical plane should not exceed ±22.5°, should be installed in place with no significant impact shaking and vibration

▪ Installation: The installation of fastening screws can be used,the YeC6-09-32 contactor can also be installed on 35mm standard DIN rail.

.

Type designation

Ye C 6 - 09 / 0 1 220V

↓	↓	↓	↓	↓
Company	AC	Design	Rates current of the	Normally open	Normally closed	Coil
code	contactor	number	mian contacty	auxiliary	auxiliary	voltage

Rated current (A)

Auxiliary contact

Type

Normal open (NO)

Normal close (NC)

9

1

-

YeC6-0910*.

-

1

YeC6-0901*.

12

1

-

YeC6-1210*.

-

1

YeC6-1201*.

18

1

-

YeC6-1810*.

-

1

YeC6-1801*.

25

1

-

YeC6-2510*.

-

1

YeC6-2501*.

32

1

-

YeC6-3210*.

-

1

YeC6-3201*.

40

1

YeC6-4011*.

50

1

YeC6-5011*.

65

1

YeC6-6511*.

80

1

YeC6-8011*.

95

1

YeC6-9511*.

Inner accessories

Type

YeC6-09

YeC6-12

YeC6-18

YeC6-25

YeC6-32

YeC6-40

YeC6-50

YeC6-65

YeC6-80

YeC6-95

Rated insulation voltage (Ui)

V

690

Rated thermal current (Ith)

A

20

32

40

50

60

80

95

AC-3, 380V

AC-3, 660V

AC-4, 380V

AC-4, 660V

A

9

12

18

25

32

40

50

65

80

95

A

6.6

8.9

12

18

21

34

39

42

49

55

A

3.5

5

7.7

8.5

12

18.5

24

28

37

41

A

1.5

2

3.8

4.4

7.5

9

12

14

17.3

21.3

Max. power of 3 phase motor controlled

AC-3, 660V

kW

2.2

3

4

5.5

7.5

11

15

18.5

22

25

kW

4

5.5

7.5

11

15

18.5

22

30

37

45

kW

5.5

7.5

10

15

18.5

30

33

37

45

55

AC-3

Electrical life

AC-4

10000 t

100

80

60

10000 t

20

15

10

Mechanical life

10000 t

1000

800

600

Operation frequency

t/h

1200

600

t/h

300

Matching fuse

RT16-

type

20

32

40

50

63

80

100

125

Matching thermal relay type

JR28-25

JR28-36

JR28-93

Wiring capacity

mm²

1.5

2.5

4

6

10

16

25

35

Coil

Control power voltage (Us)

AC

V

36, 110, 127, 220, 380

Allowed control circuit voltage

V

85%~110%Us

V

20%~75%Us(AC)

Close

VA

70

110

200

Keeping

VA

8

11

20

Loss power

W

1.8~2.7

3~4

6~10

Auxiliary contact

Rated thermal current (Ith)

A

10

Rated operation AC-15 voltage (Ue) DC-13

V

380

V

220

Rated control capacity

VA

360

W

33

Overall and mounting dimensions(mm)

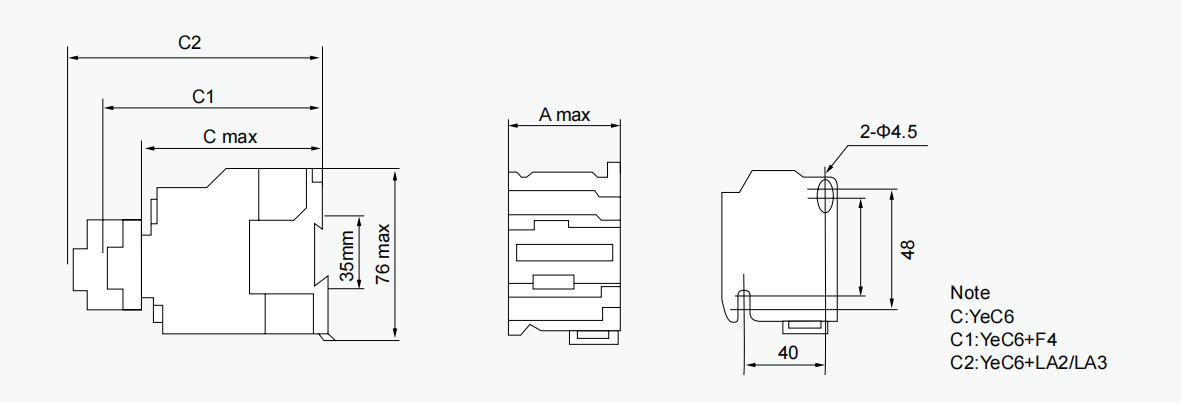

Pic.1 YeC6-09,12,18

Type	A max	C max	C1	C2
YeC6-09,12	47	82	115	134
YeC6-18	47	87	120	139

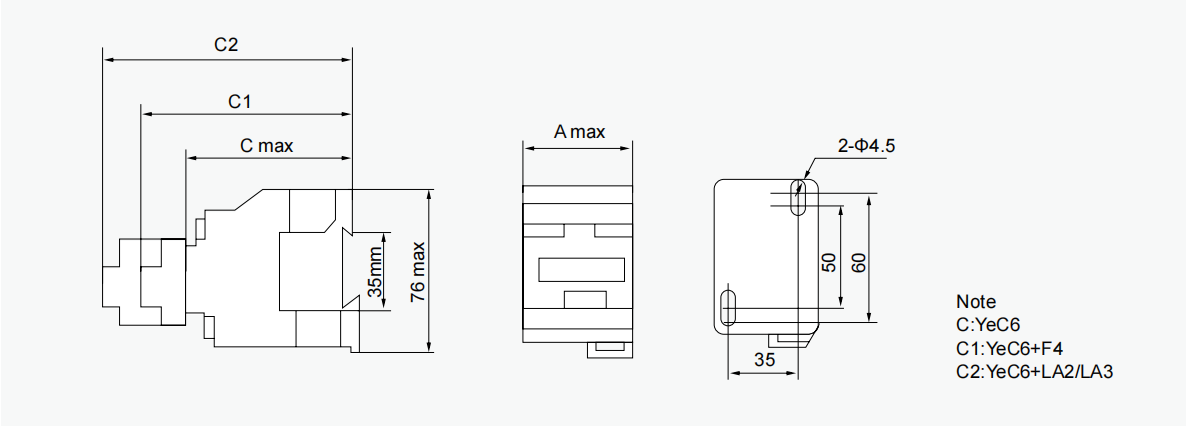

Pic. 2 YeC6-25,32

Type	A max	C max	C1	C2
YeC6-25	57	95	128	147
YeC6-32	57	100	133	152

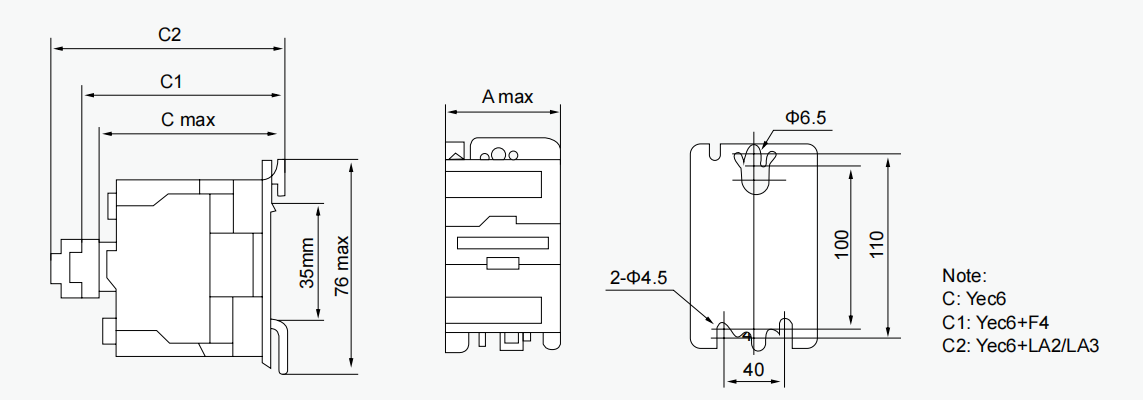

Pic. 2 YeC6-40~95

Type	A max	C max	C1	C2
YeC6-40,65	77	116	149	168
YeC6-80,95	87	127	160	179

F4-D, LA2-D, LA3-D Contact Bloc

Type	Product	Configuration of contacts
Type	Product	Number of N/O contact	Number of N/C contact
F4-DN20 F4-DN11 F4-DN02		2 1 0	0 1 2
F4-DN40 F4-DN31 F4-DN22 F4-DN13 F4-DN04		4 3 2 1 0	0 1 2 3 4
Type		Time-delay range	Number of time-delay contacts
LA2-DT0 LA2-DT2 LA2-DT4		0.1s~3s 0.1s~30s 10s~180s	NO+NC NO+NC NO+NC
LA3-DR0 LA3-DR2 LA3-DR4		0.1s~3s 0.1s~30s 10s~180s	NO+NC NO+NC NO+NC

LX1-i/s Coil

Type

Product

Coil voltage Us(V)

Frequency (Hz)

24

36

42

48

110

127

220

230

240

380

400

415

440

600

LX1i/s-D2 09-18A

LXli/s-D2 25-38A

Lxii/s-D 240-65A

Lxli/s-D8 80-95A

50Hz

B5

C5

D5

E5

F5

G5

M5

P5

U5

Q5

V5

N5

R5

X5

60Hz

B6

C6

D6

E6

F6

G6

M6

P6

U6

Q6

V6

N6

R6

X6

50/60Hz

B7

C7

D7

E7

F7

G7

M7

P7

U7

Q7

V7

N7

R7

X7

Derived Products When The Contactor is Assembled With Following Accessory Module

Derived products

Contactor

Accessory module


Time-delay Contactor

+

Reversing Contactor

+

Magnetic Starter

+

Auxiliary Contact

+

Changeover

Capacitor

AC Contactor

+

Star-delta contactor

+ +
